TP5200 is a boost-type switching dual-cell 8.4V lithium battery charging management IC. It's ESOP8 package and minimal peripheral circuitry make the TP5200 highly suitable for high-current charging management in portable devices. The chip integrates comprehensive protection features including input over-current protection, undervoltage lockout, overvoltage protection, thermal shutdown, short-circuit protection, and battery temperature monitoring.

Operating with a 5V input voltage range, the TP5200 employs a three-stage charging process (trickle pre-charge, constant current, and constant voltage). Both trickle pre-charge current and constant-current charging current are adjustable via external resistors, supporting a maximum constant charging current of 1A. With optimized peripheral component requirements, the TP5200 maintains low thermal dissipation even during high-current charging. The built-in power PMOSFET and reverse-blocking circuit eliminate the need for external protection components such as anti-backflow Schottky diodes.

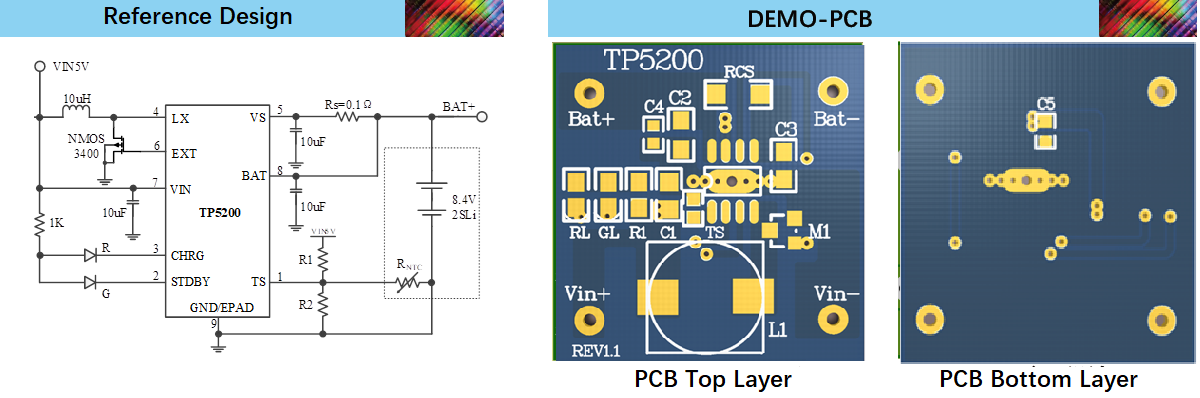

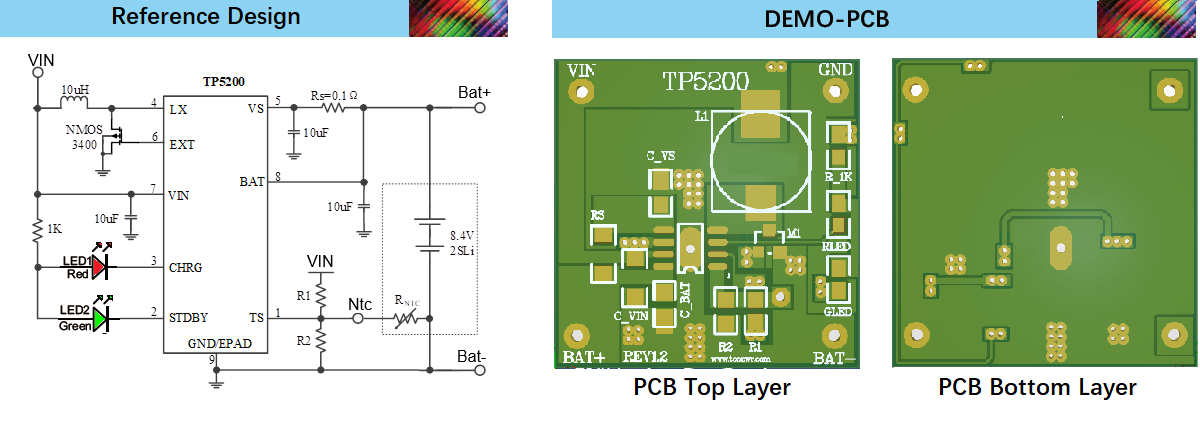

▶ 5V input for Dual-cell 8.4V Lithium Battery Charging
▶ Boost-type switching, high efficiency
▶ Built-in Power MOSFET with Switching Mode
Reduces component heat generation and simplifies peripheral circuitry
▶ Programmable Charging Current (0.1A–2A)
Adjustable via external resistors
▶ Dual-LED Charging Status Indication
Integrated Protections Chip overtemperature, overcurrent, overvoltage, undervoltage protection
▶ Battery Protection Features
Temperature monitoring and short-circuit protection
▶ Switching Frequency: 650KHz
▶ High Voltage Regulation Accuracy
Charging voltage control precision within +-1%
▶ Three-Stage Charging (Trickle/CC/CV)
